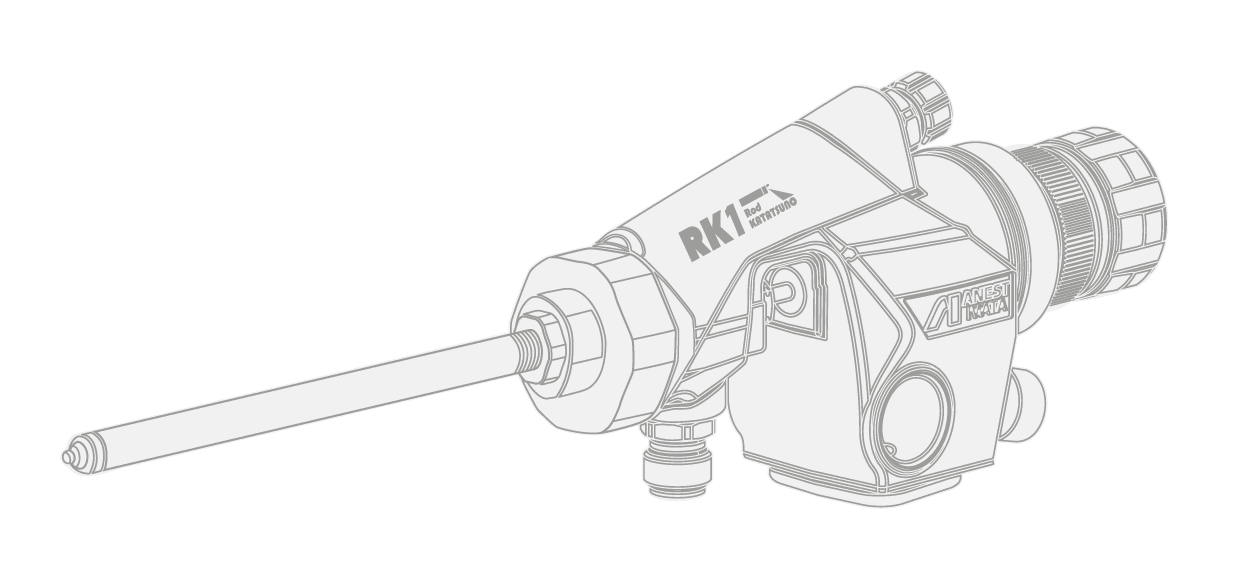

Auto Spray Gun

Designed for internal paint application
of cylindric surfaces this extension auto spray gun
is available in three pipe lengths and equipped
with three different pipe diameters.


Due to the ability to be unlocked using just a 14 mm socket wrench, the new air valve seat design enhances and makes removal easier.

The portion of the seal that blocks paint flow is constructed of a specific composite material with rubber and fluorinated resin, the choice of components and their coupling provide a longer lifespan of the seal itself.

The new fluid adjustment feature for the RK1 and WIDER1A improves and simplifies its disassembly, removal now achievable without the use of any tools.

Features & Highlights

5 Low Overspray Low Overspray
6 Precise Pattern Control Precise Pattern Control

Find Your Spare Parts

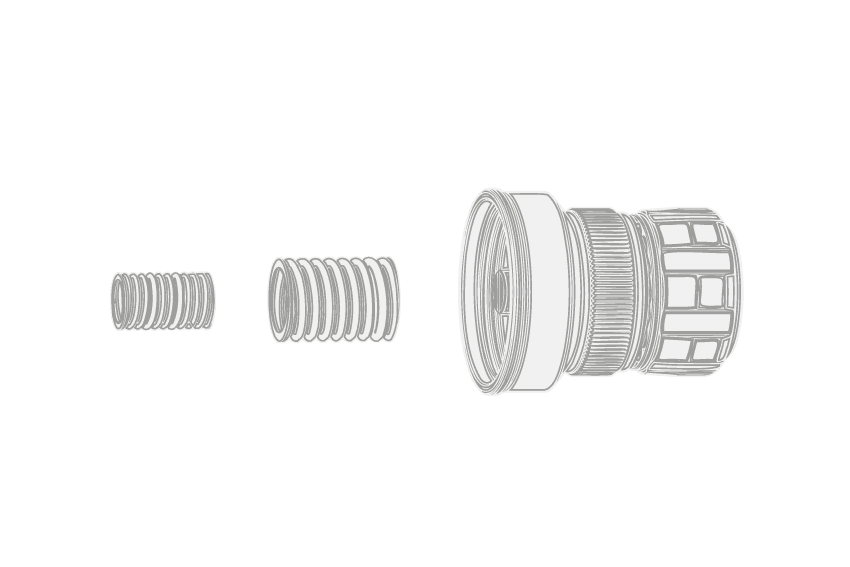

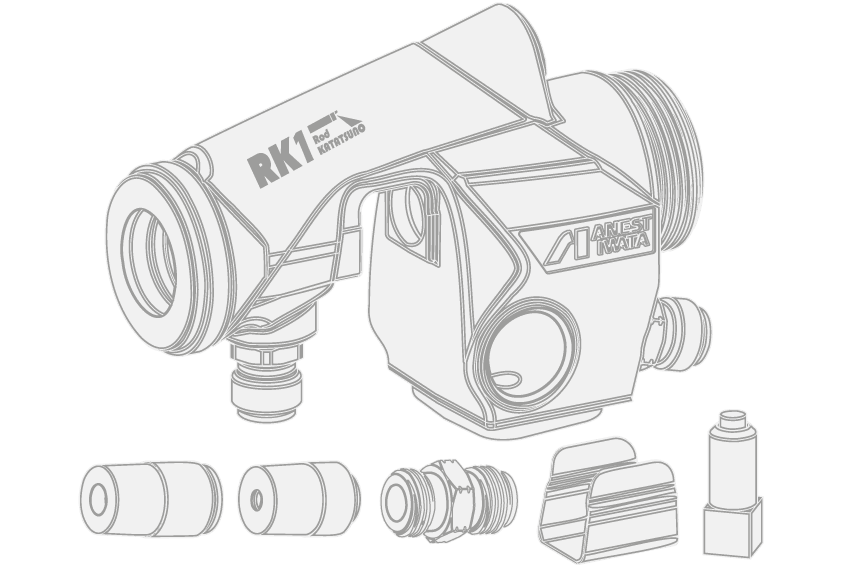

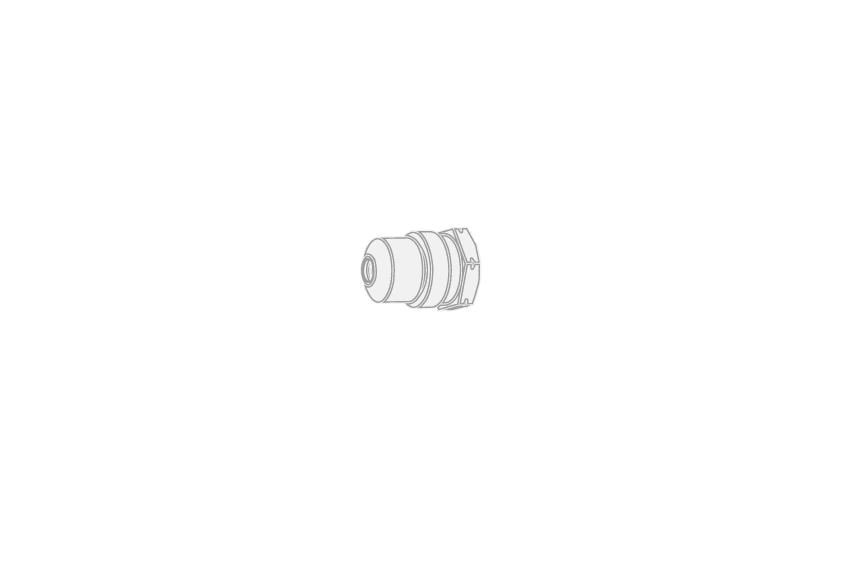

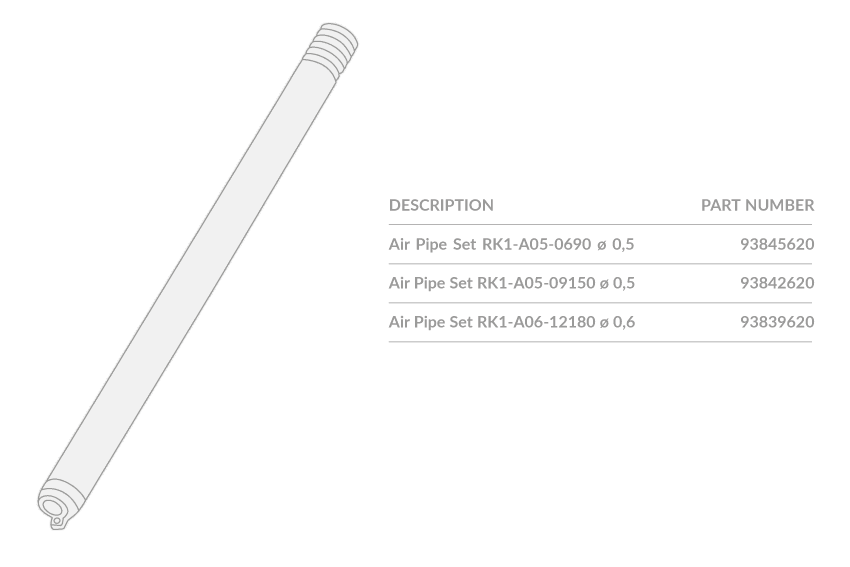

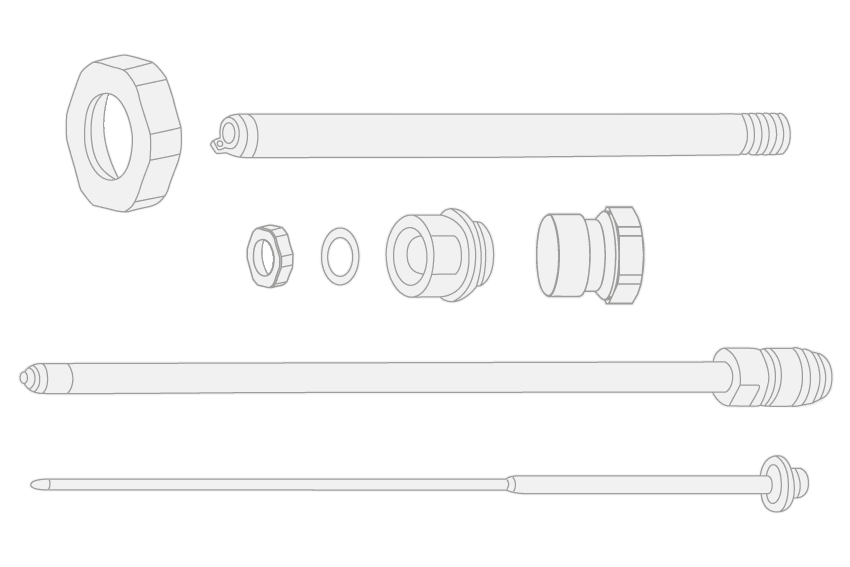

Air Pipe Set Needle Packing Cartrige Set Fluid Needle Guide Set Base Set Air Valve Seat Set

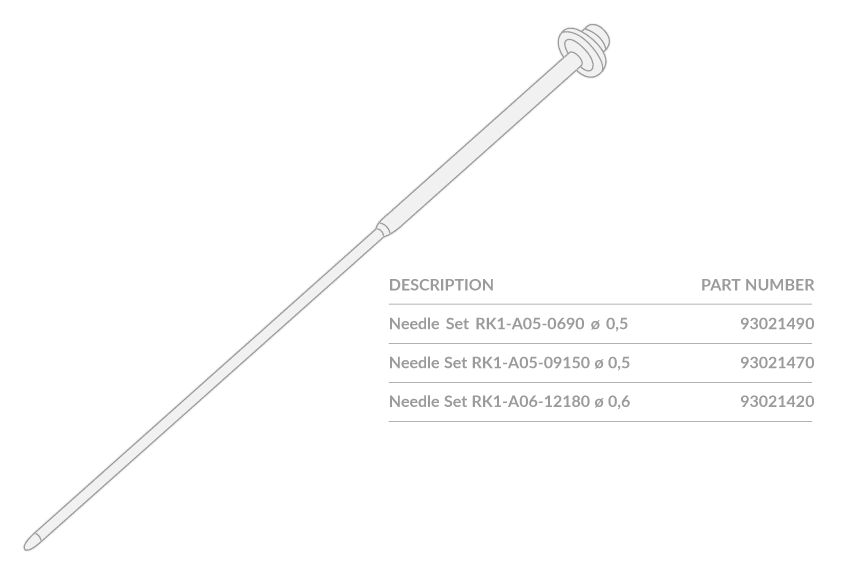

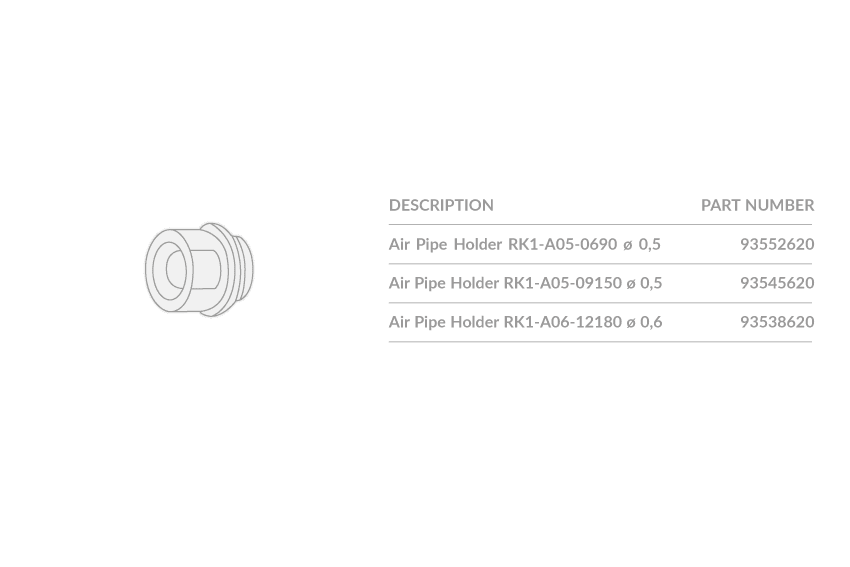

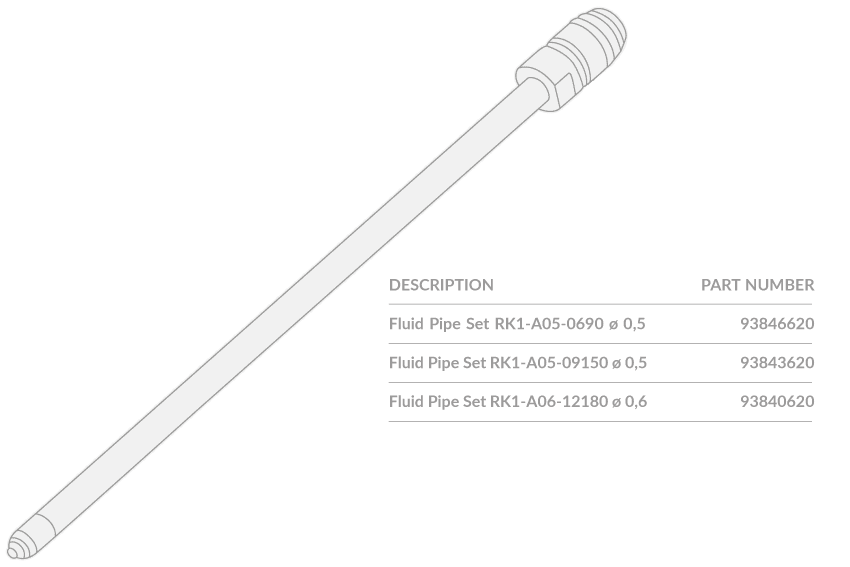

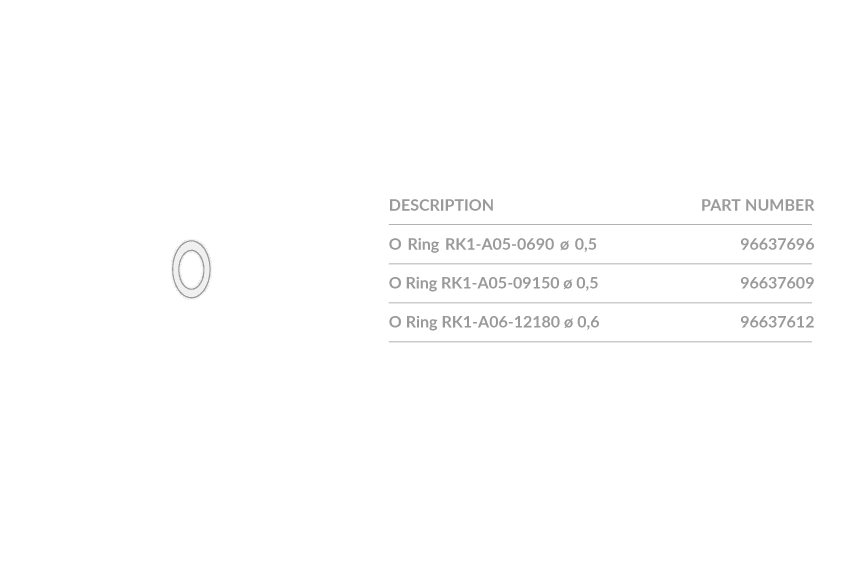

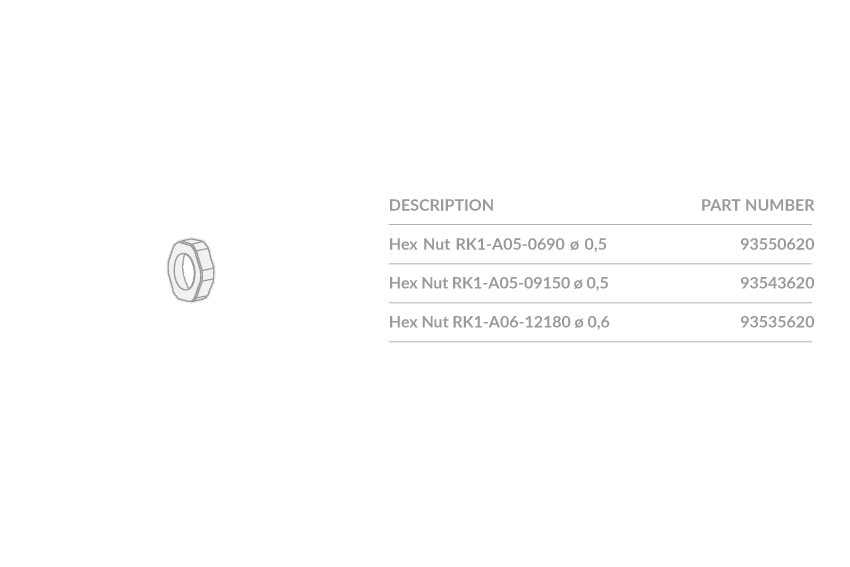

Cover Set93021411 Air Pipe Set Fluid Pipe Set Needle Set Hex Nut O Ring Plug93625371 Air Pipe Holder
Needle Packing Set93810620
Fixing Bolt93811580 Protection Cover93013510 Air Nipple G/1/4''93502621 Half Union Ø 6 mm (for “CYL)96802000 Half Union Ø 8 mm (for “CAP”)96802001
Needle Spring93514580 Piston Spring93513580 Fluid Adjustment Set93013711

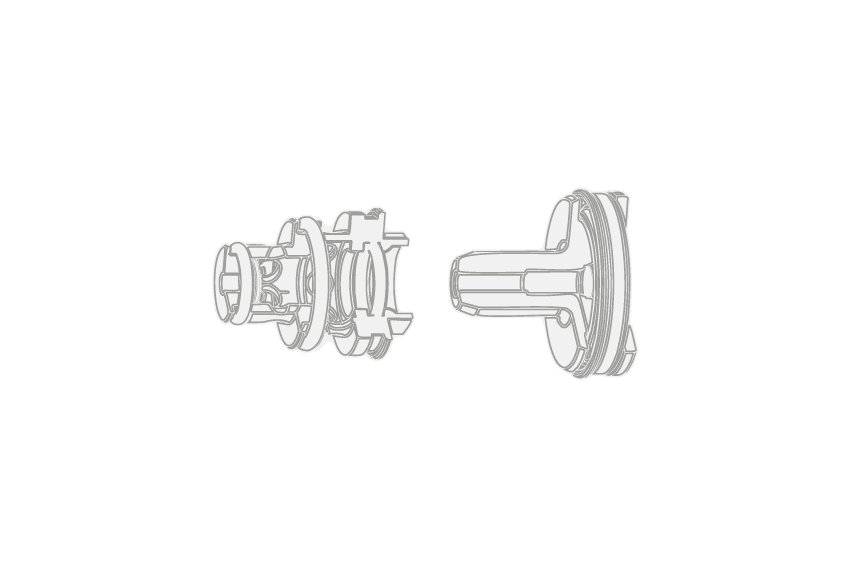

O' Ring Set93849620 Air Valve Seat Set93013700 Piston93511580 "Y" Piston Packing Set (2 pcs./1 pk.)93903441
